Column:Lighting car

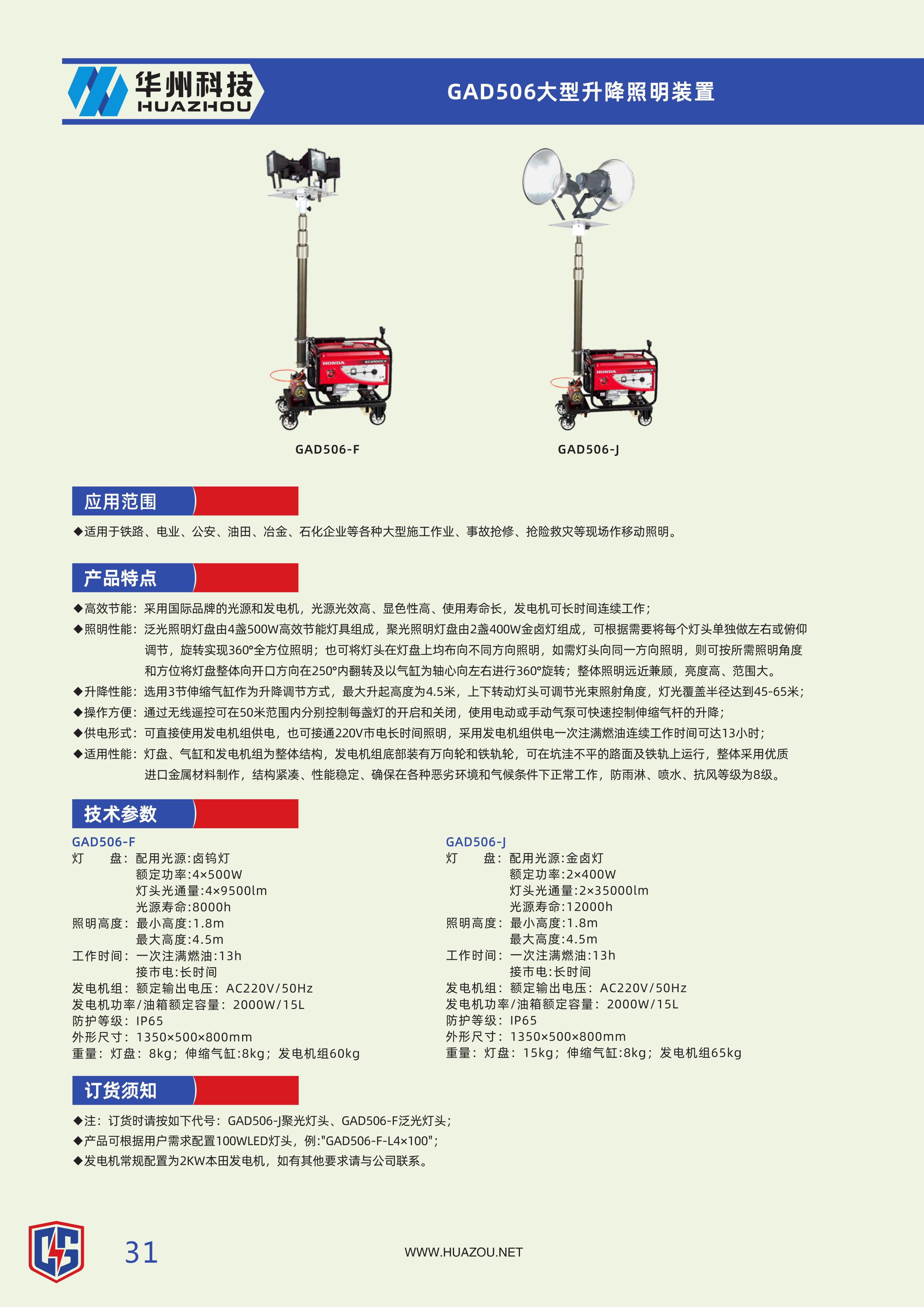

Lamp panel: with light source:Tungsten halogen lamp / metal halide lamp / LED Rated power:4x500W/2X500W/2x400W/4X1000W/4X100W Luminous flux of lamp cap:4x9500lm/4x35000lm/4x12000lm Lighting height:Minimum height: 1.8m maximum height: 4.5m working hours:Once filled with fuel: 13h, connected to mains: long time Generator set: rated output voltage:AC220V/50Hz Generator power:2000W rated tank capacity:15L Protection level:IP65 weight:Lamp panel: 8kg telescopic cylinder: 8kg generator set: 60kg 产品描述 Product description:Three telescopic cylinders are selected as the lifting adjustment mode, the lifting height is 4.5m, the light beam angle can be adjusted by turning the lamp cap up and down, and the light coverage radius can reach 45-65m; the wireless remote control can control the opening and closing of each lamp within 50m, and the electric or manual air pump can quickly control the lifting of the telescopic air rod; the universal wheel and rail wheel are installed at the bottom of the generator set, which can be used to control the lifting of the telescopic air rod Running on uneven road surface and rail, the continuous working time can be up to 13 hours with a full fuel.
产品应用 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
◆适用于铁路、电业、公安、油田、冶金、石化企业等各种大型施工作业、事故抢修、抢险救灾等现场作移动照明。 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
性能特点 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
◆高效节能:采用国际品牌的光源和发电机,光源光效高、显色性高、使用寿命长,发电机可长时间连续工作; ◆照明性能:泛光照明灯盘由4盏500W高效节能灯具组成,聚光照明灯盘由2盏400W金卤灯组成,可根据需要将每个灯头单独做左右或俯仰 调节,旋转实现360°全方位照明;也可将灯头在灯盘上均布向不同方向照明,如需灯头向同一方向照明,则可按所需照明角度 和方位将灯盘整体向开口方向在250°内翻转及以气缸为轴心向左右进行360°旋转;整体照明远近兼顾,亮度高、范围大。 ◆升降性能:选用3节伸缩气缸作为升降调节方式,最大升起高度为4.5米,上下转动灯头可调节光束照射角度,灯光覆盖半径达到45-65米; ◆操作方便:通过无线遥控可在50米范围内分别控制每盏灯的开启和关闭,使用电动或手动气泵可快速控制伸缩气杆的升降; ◆供电形式:可直接使用发电机组供电,也可接通220V市电长时间照明,采用发电机组供电一次注满燃油连续工作时间可达13小时; ◆适用性能:灯盘、气缸和发电机组为整体结构,发电机组底部装有万向轮和铁轨轮,可在坑洼不平的路面及铁轨上运行,整体采用优质 进口金属材料制作,结构紧凑、性能稳定、确保在各种恶劣环境和气候条件下正常工作,防雨淋、喷水、抗风等级为8级。
◆注:产品可根据用户需求配置不同光源灯头功率及参数。 |
